"If the distance between the components is so close that the first beam generated by diffraction can no longer enter the objective lens simultaneously with the non-diffracted light cone, then the microscope will not be able to observe them separately." Ernst Abbe, 1873.

In VirtualLab Fusion, we have established an imaging system, using a chromium grating as a test object, and demonstrated Ernst Abbe's theory. On the one hand, we changed the grating period; on the other hand, we changed the aperture on the Fourier plane (while keeping the period unchanged) and studied its impact on image formation.

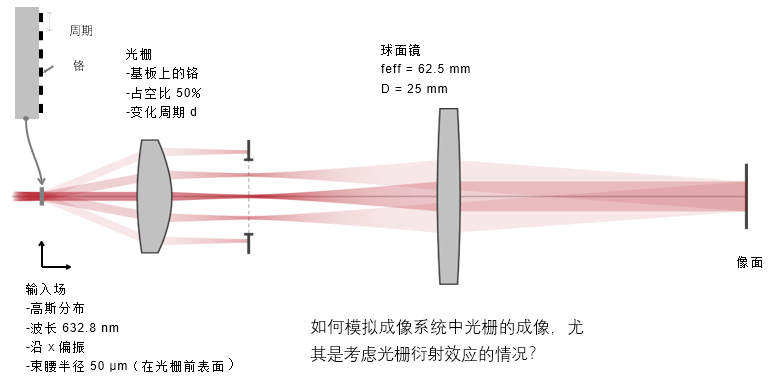

Modeling Task - Imaging with Grating Period Variation

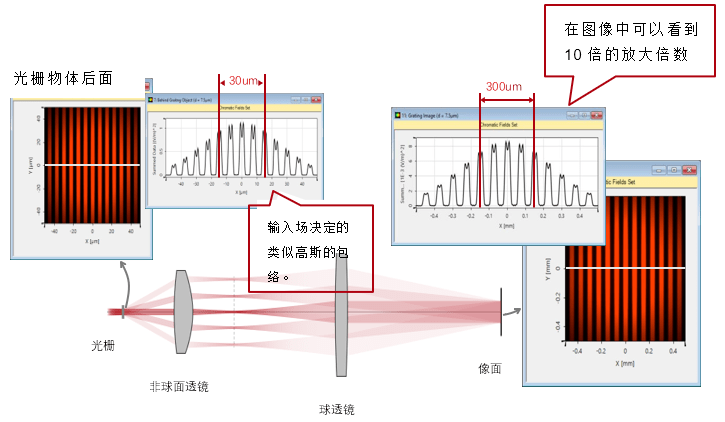

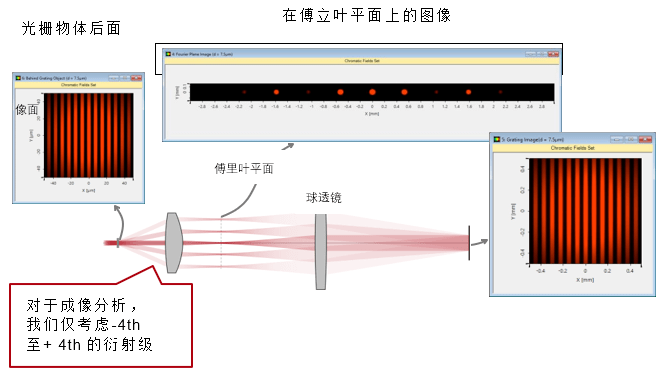

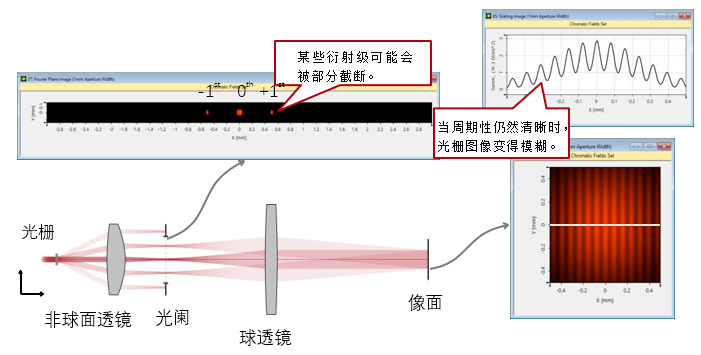

Image Formation Analysis

Image Formation Analysis

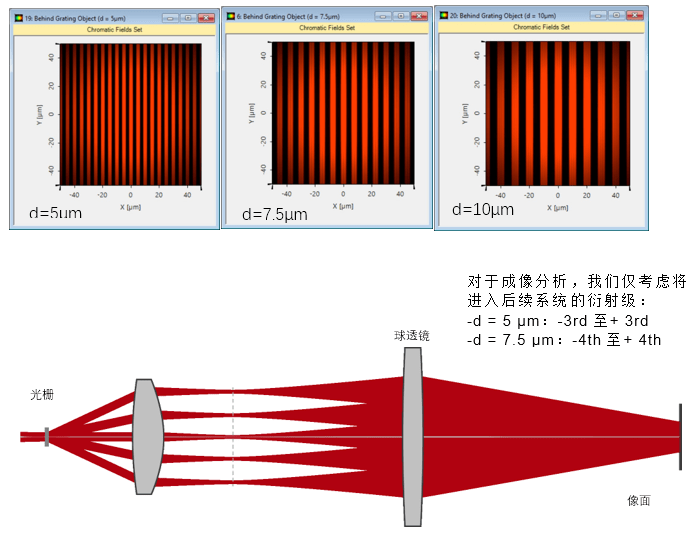

Gratings with Different Periods

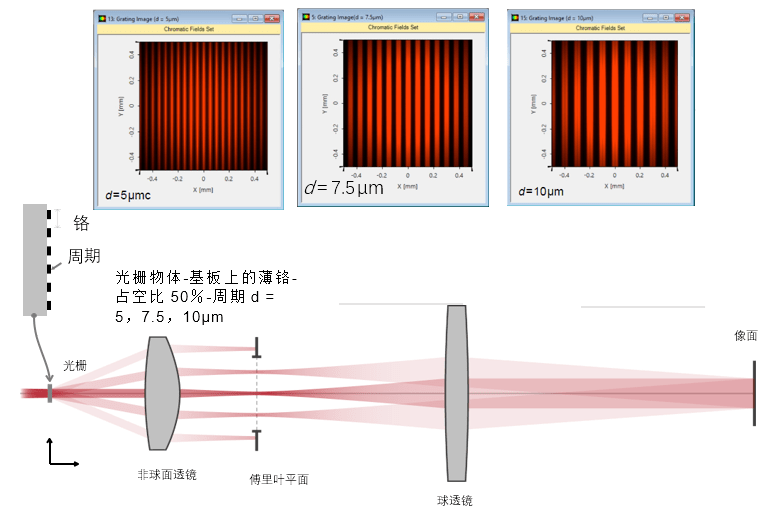

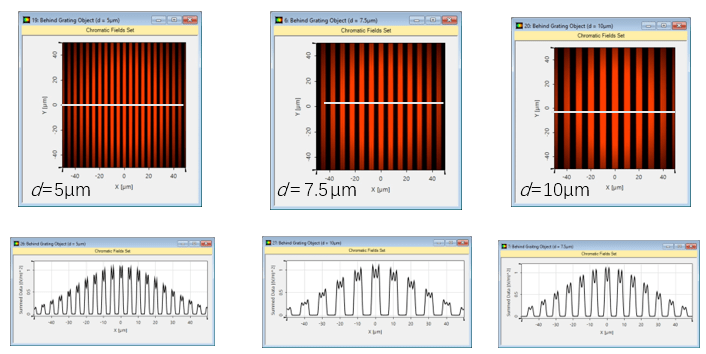

Imaging of Gratings with Different Periods

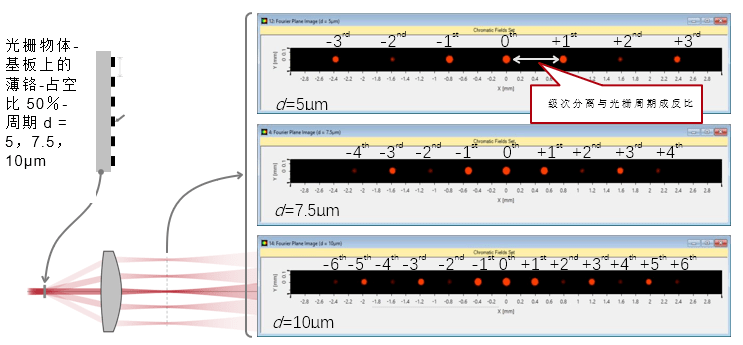

Fourier Plane Images with Different Periods

Imaging of Gratings with Different Periods

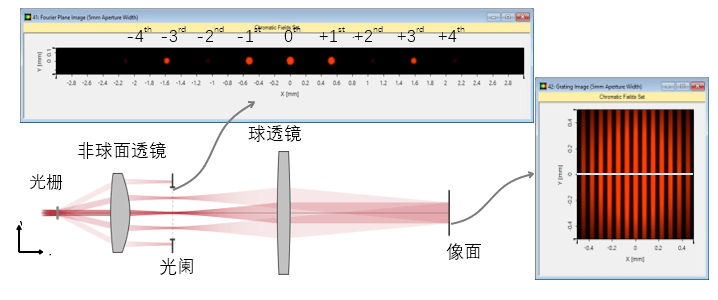

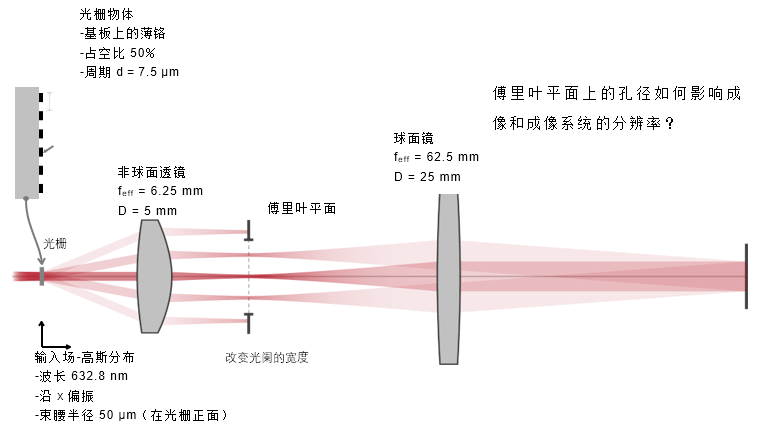

Aperture width of 5mm

Aperture diameter of 3mm

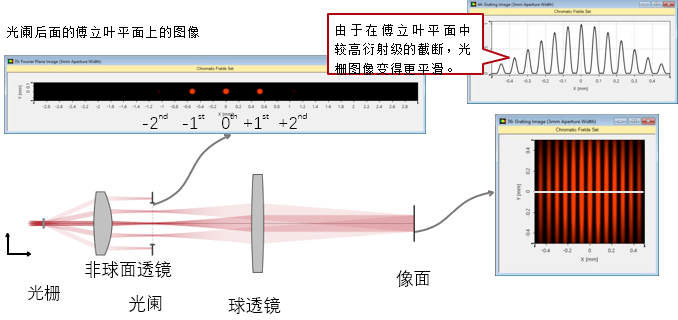

Aperture diameter of 1mm

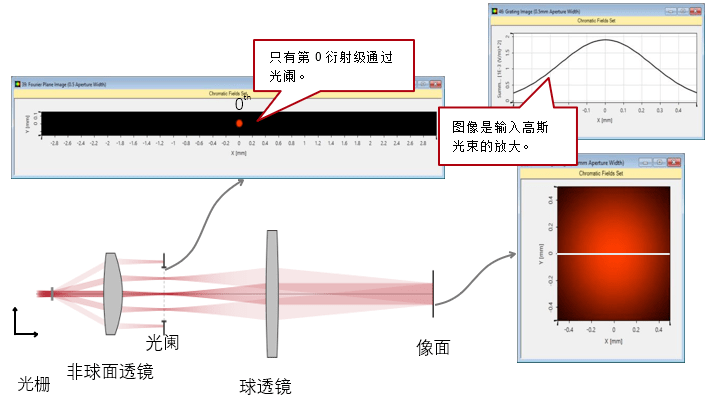

Aperture diameter of 0.5mm

Application of VirtualLab Fusion

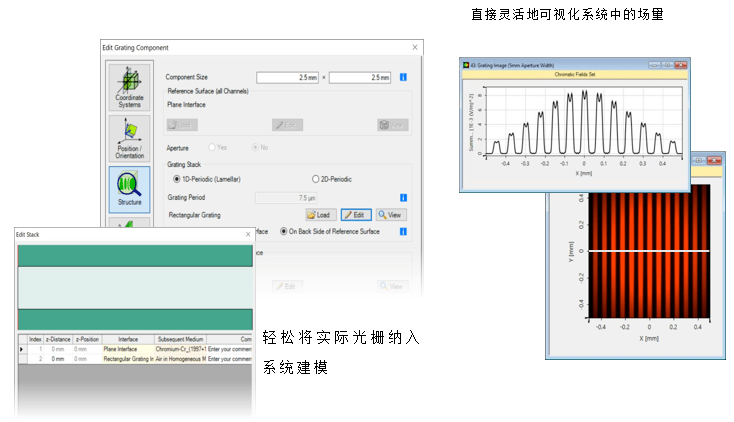

Workflow in VirtualLab Fusion

Import the lens system from Zemax OpticStudio®.

- Import Optical Systems from Zemax OpticStudio® [Use Case]

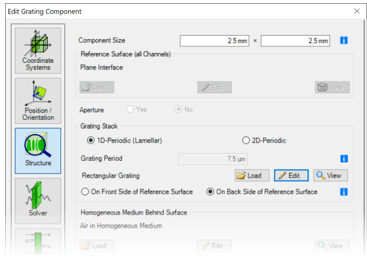

Include grating elements in the system modeling and set the Fourier transform appropriately according to the situation.
